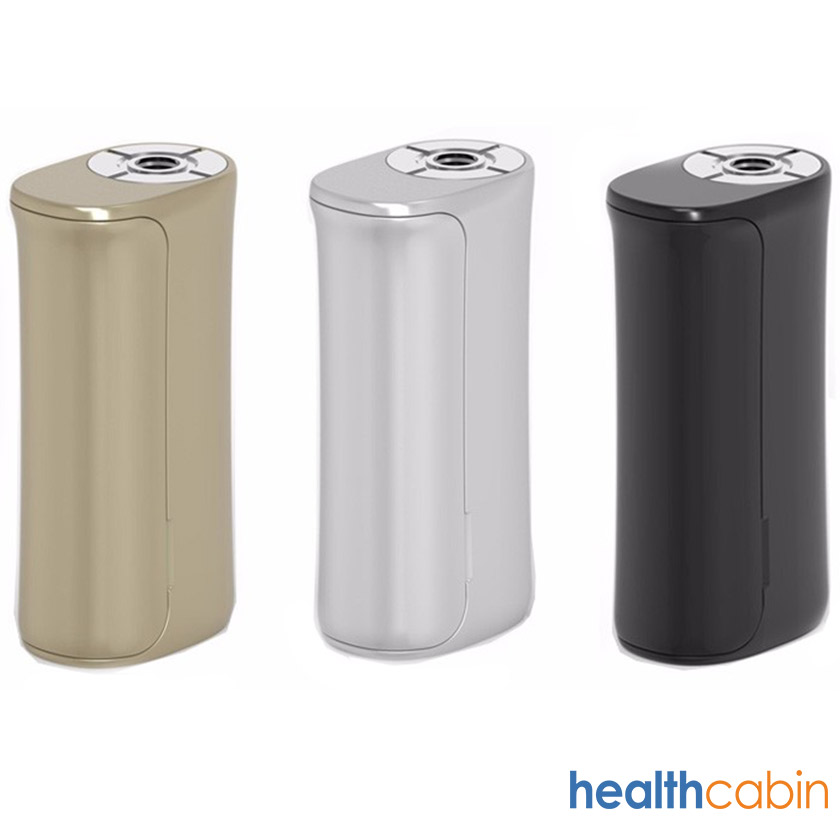

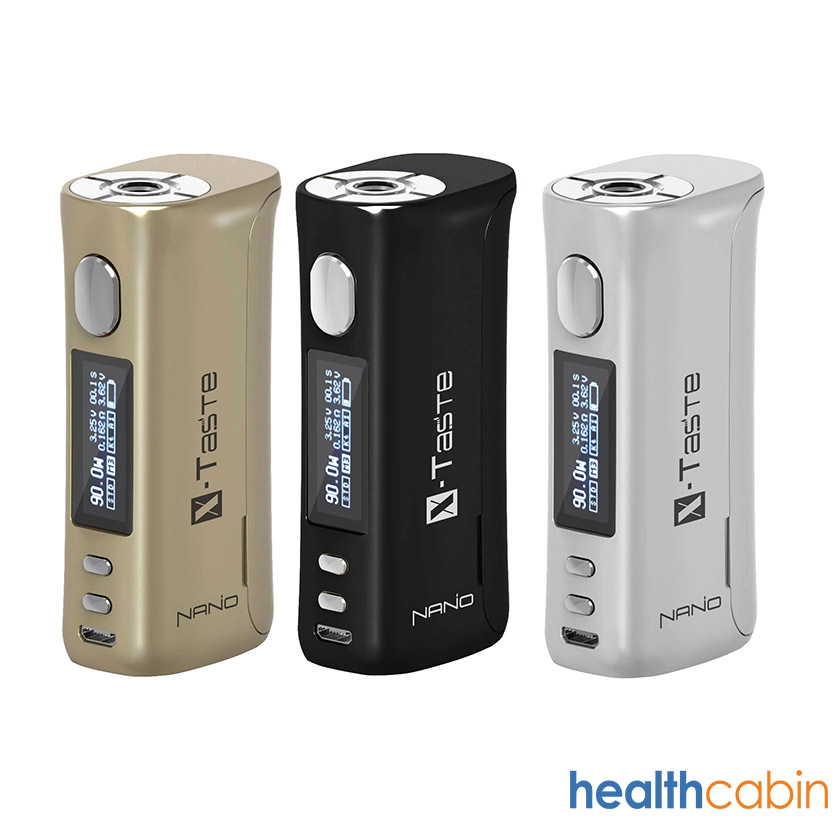

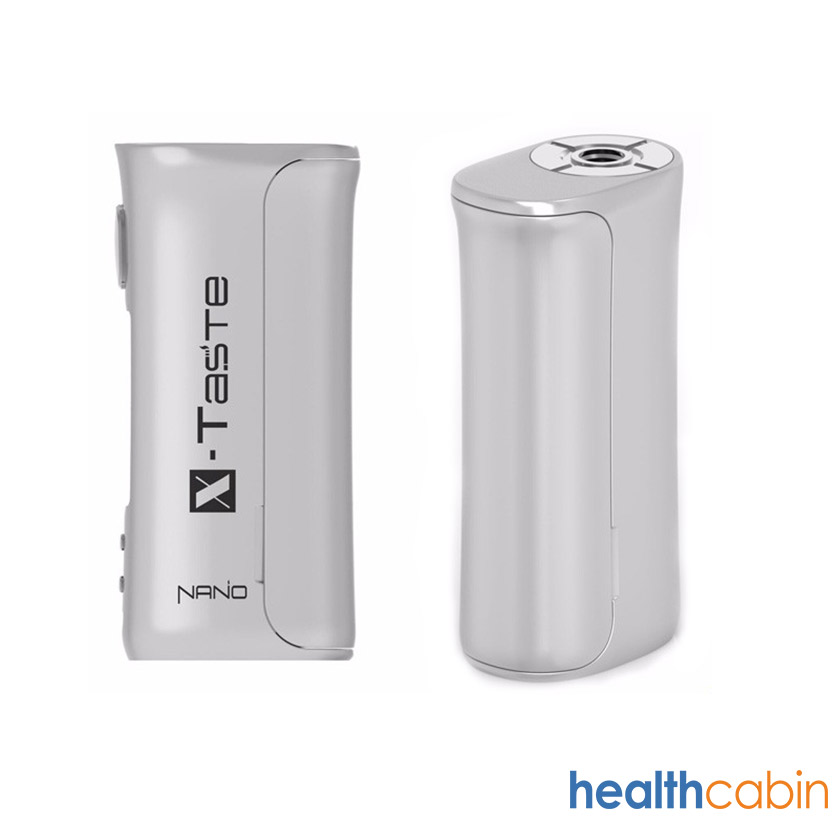

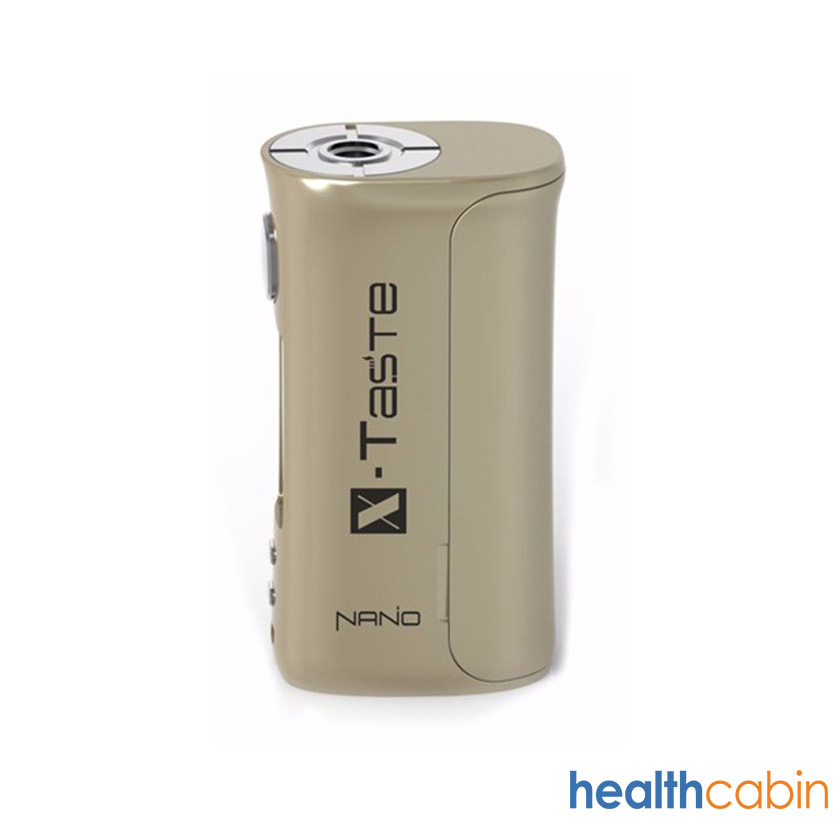

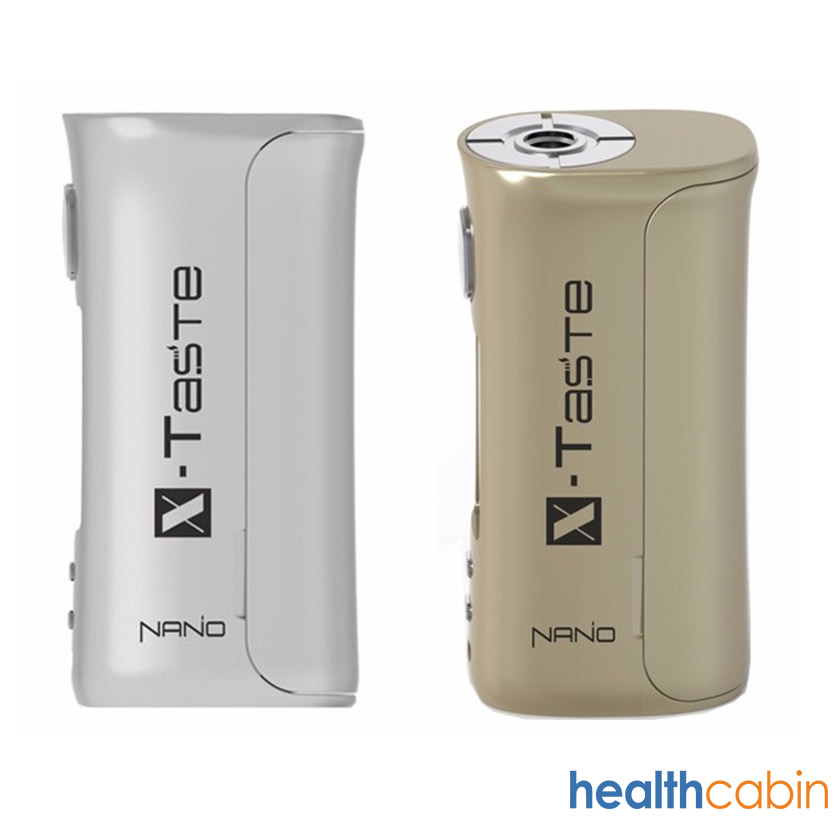

X-Taste Nano 90W Box Mod






Features:
1. Power control mode/Temperature control mode
2. Battery Management.Support maximum up to 1.0A USB charging current.Approximate 3 hour for 2600mAH LIPO battery.
3. Safety feature.Dry coil protection (only applicable for temperature control mode).Coil overheat protection,Support Ni200, Ti01/02, SS316L, NiFe30, NiFe70, Nichrome N60. Refer to coil material table for detail.Protection temperature can be change through "X-Taste Advance".Real-time on-board temperature monitoring. Auto shutdown device if temperature too high.Battery health condition checking feature. Able to give alert if battery not in good condition.Coil over voltage protection.Coil over current protection. Coil short/open circuit protection.Weak battery protection.Battery over charge protection.Battery over load protection.10 seconds maximum fire duration protection.Battery reverses polarity protection.
4. Support firmware upgrading through USB port.
5. Screen lock
6. Coil resistance measurement
7. Real-time display data during fire on.Battery voltage, capacity,Coil resistance (power mode),Sensing coil temperature (temperature mode),Coil voltage
8. Auto power off features, 90 seconds.Can be modifying through "X-Taste Advance".
9. 5 individual preset configurations.
10. Auto/left/right screen rotation.
11. Continuous short press "Fire ON" button 3 times to power on devices.
12. Smart auto lock coil resistance.
13. Using TCR or temperature coefficient based on type of coil material for more precise temperature control and coil overheats protection.
14. X-Taste Advance software allow user to modify setting and operation of the device.
15. Support 10 multi languages:English, Simplify Chinese, Italian, Russian, Spanish, German, French, Portuguese, Dutch and Malay.

Band: X-Taste
Size: 80*41*28mm
Material: Zinc Alloy
Thread: 510
Display: 0.91 inch OLED
Battery: 18650 3.7V
Atomizer Output Power:5-90W
Atomizer Output current range:0A-25A
Atomizer Output voltage range: 0.5V-9.5V (Buck-Boost DC-DC converter)
Power consumption (Without fire): 0.22W
Standby current: 60.0uA
Coil resistance: Measurement range 0.04 ohm -10 ohm,Resolution: 1m ohm (based on 0.1ohm measurement)
Recommended resistance range: 0.08ohm-3ohm(Power control mode),0.08ohm-2ohm(Power control mode)
Efficiency: Approximate 88% for KT-A1 (at 60W), full battery capacity *1
Unit:1 Set
Shipping Weight:408g
Package:Gifts Box
